Brand: Jiuban
Model: JB180-B
Name: spray automatic laser particle size analyzer
一、Product Overview:
JB180-B is the upgrading product of JB180 spray particle size analyzer. JB180-B adopts split design, and its application scope is more extensive. The performance is more stable, the measurement range is larger, and it can adapt to various complex test environments. At the same time, PW180-B has been dust-proof treatment.

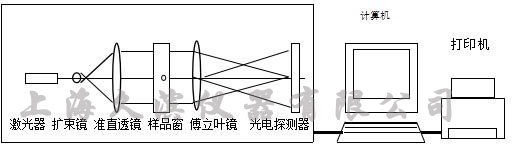

二、Main performance characteristics: JB180-B uses split structure, which can test long-distance samples. JB180-B uses a large platform, even if it is used in one, it can meet the normal test at the distance of 0.1 M to 10 m.Advanced optical design: JB180-B uses Fraunhofer diffraction principle and typical parallel optical design, equipped with high-power semiconductor lasers; unique high-density detection unit, so that JB180-B has super-strong small particle testing ability, JB180-B seamless testing in 1-800 um. At the same time, JB180-B has added the optical path automatic adjustment device, which is convenient to operate and prolongs the applicability life of the instrument.High power semiconductor lasers: JB180-B uses high power semiconductor lasers to enhance the resolution of the instrument, so that small particles can not hide.Automatic alignment of light path: JB180-B has exclusive initiative to add automatic alignment function in the spray particle size analyzer. The automatic adjustment system of optical path added by JB180-B ensures the stability and accuracy of instrument measurement. At the same time, it greatly reduces the workload of operators.Imported Lens: JB180-B uses Canon as the main lens, with small distortion and high imaging. The receiver uses a large aperture and long focal length lens with a diameter of 150 mm, which makes particle detection more accurate.Ultra-wide range: JB180-B range reaches 1-1000 um.Auxiliary light positioning: JB180-B joins the auxiliary light positioning function originally. When positioning, two laser beams are emitted simultaneously at the transmitting end. After the two points of the receiving end coincide, the receiving end can start the optical path automatic adjustment system, which greatly simplifies the adjustment difficulty.Powerful analysis software: Powerful analysis software can record the particle size distribution of all droplets in all laser beams at any time. The test results of moving spray in laser beam can be continuously recorded and statistically analyzed.三、Main technical parameters:Specification type
| JB180-B
|
Executive standard
| GB/T 19077-2016/ISO 13320:2009
|
Test range
| 1μm-1000μm
|
Number of detector channels
| 66
|
Accuracy error
| <3%(D50 value of national standard sample)
|
Repeatability error
| <3%(D50 value of national standard sample)
|
Injection mode
| Open injection
|
Instrument structure
| Separate or integral forms are optional
|
Separate guideway (selection)
| Separate instrument, test area within 3 meters can be selected guide
|
Laser parameters
| Imported fiber output high power laser lambda = 650 nm, power 1-40 MW adjustable
|
Operation mode
| Computer operation
|
Testing speed
| < 1min / 次
|
weight
| 25Kg |
