The testing machine adopts advanced chip integration technology, specially designed PCL data acquisition and amplifying and controlling system, the test force and distortion amplifying, a/d conversion process realize full digital adjustment. This machine adopts microcomputer display, which can test and analyze the mechanical properties of all kinds of metal, non-metal and composite materials, widely used in aerospace, petrochemical, Machinery Manufacturing, wire and cable, textile, fiber, plastic, rubber, ceramics, food, pharmaceutical packaging, aluminum plastic pipe, plastic doors and windows, geotextiles, film, wood, paper, metal materials and manufacturing, according to GB, Jis, ASTM, Din, ISO and so on, the test force value, the fracture force value, the yield strength, the up and down yield strength, the compression strength, the tensile strength, the fracture elongation rate, the tensile modulus of elasticity, the bending modulus of elasticity and so on can be obtained automatically.
一、SCOPE of application:
Are widely used in various metal, non-metallic,composite materials,medicine, food, wood, copper, aluminum, plastic profiles, waterproof coiled materials, thermal insulation materials, wires and cables,paper, film,rubber, textile, aerospace and other industries for tensile compression,bending,shear and other performance indicators. At the same time, we can customize all kinds of experimental data processing software and test accessories accoring to domestic and international standards provided by users.

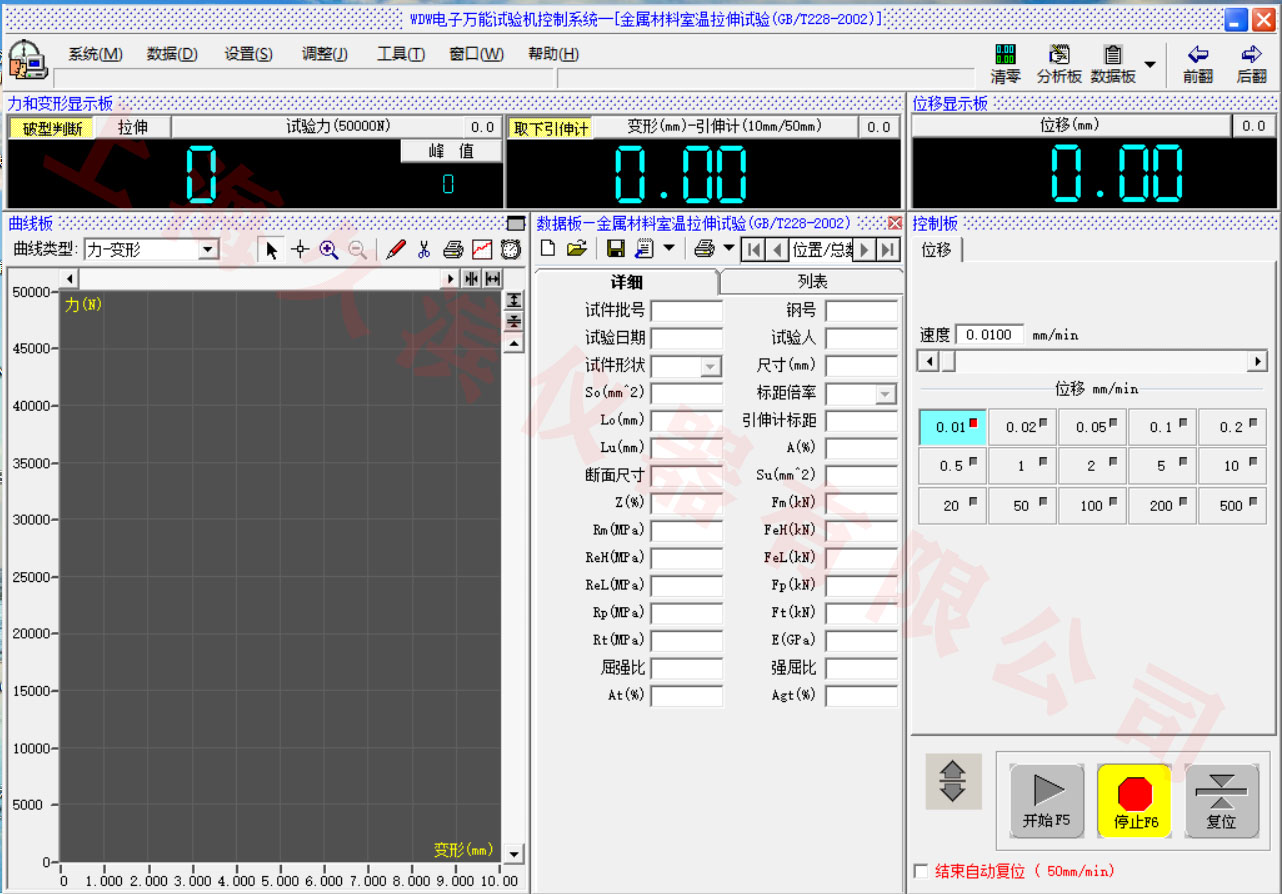

Software
二、Technical specification:
.Maximum test force(KN):0.1、0.2、0.5、1、2、5
.Force measuring range:Maximum test force 0.4%-100%
.Force accuracy:Better than the indication value ±0.5%
.Displacement resolution:0.01mm
.Displacement accuracy:Better than the indication value ±0.5%
.Effective tensile stroke:Standard:600mm(Can be customized according to customer requirements)
.Test speed:0.01-500mm/min
.Test accessories:Standard tensile fixture one set
三、Product features:
☆ This machine has built-in controller, which can be ensured that the testing machine can realize constant velocity displacement control.
☆ AC servo motor is adopted,which has stable and reliable performance.
☆ The electric control circuit is in accordance with the international standard and the National Electrical Standard of testing machine.lt has strong anti-interference ability and ensures the stability kf the controller and the accuracy of the experimentel data.
☆ Limit protection:programmable and mechanical two level limit protection.
☆ Overload protection:when the load exceeds 3-5% of the maximum value, it will stop automatically.
☆ Automatic and manual two modes are used to obtain test results and form reports automatically, making data analysis process simple.
